Overview - Backrest Heating Element

WARNING: This page is about a different variant/trim than selected.

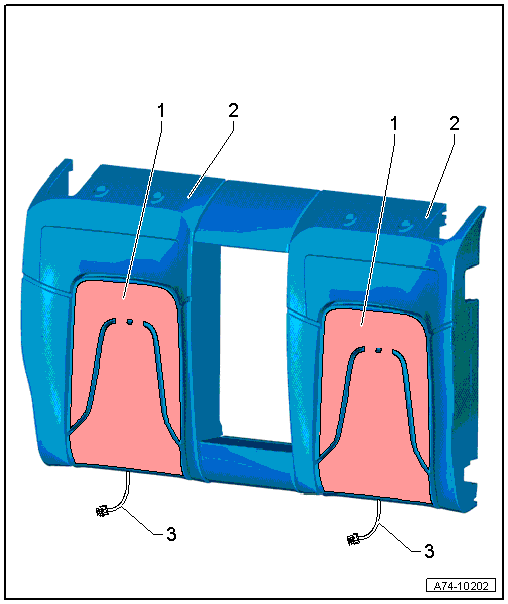

Fig 1: Backrest Heating Element Overview
GWWA74-10202Courtesy of AUDI OF AMERICA, LLC
  1. Backrest Heating Element
  2. Cushion
    • For Backrest
  3. Wire
    • Connected To The Backrest Heating Element
