Overview - Headrest Cover And Cushion

WARNING: This page is about a different variant/trim than selected.

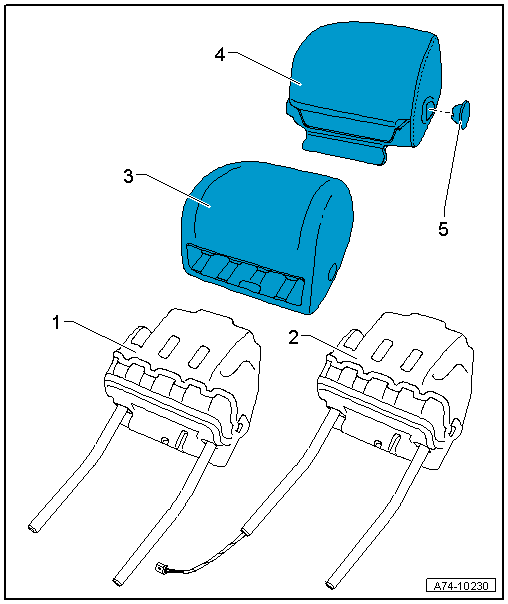

Fig 1: Exploded View Of Headrest Cover And Padding

Courtesy of AUDI OF AMERICA, LLC

Headrest Support
- Manual Headrests
Headrest Support
- Power Headrests
- Only available as a replacement with upholstery -item ) OVERVIEW - HEADREST COVER AND CUSHION - CUSHION
Cushion
- Removing and installing. Refer To HEADREST COVER AND CUSHION, REMOVING AND INSTALLING .
- The Release Button Opening Is Only With The Manual Headrests
Cover
- Removing and installing. Refer To HEADREST COVER AND CUSHION, REMOVING AND INSTALLING .
- The Release Button Opening Is Only With The Manual Headrests
Release Button
- For Height Adjustment
- Clipped To The Headrest Support
- Only Installed With Manual Headrests
