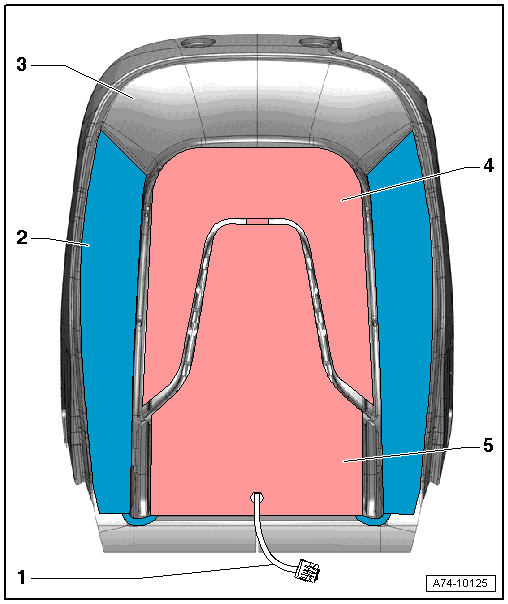

Overview - Backrest Heating Element, Comfort Seat
WARNING: This page is about a different variant/trim than selected.
- Line
- Connected To The Backrest Heating Element
- Backrest Bolster Heating Element
- Bonded
- Removing and installing. Refer To BACKREST HEATING ELEMENT -Z7- / -Z9-, REMOVING AND INSTALLING, COMFORT SEAT .
- Cushion
- For Backrest
- Upper Backrest Heating Element
- Only Bonded At The Edges With The Spacer Fabric
- Removing and installing. Refer To BACKREST HEATING ELEMENT -Z7- / -Z9-, REMOVING AND INSTALLING, COMFORT SEAT .
- Lower Backrest Heating Element
- Only Bonded At The Edges With The Spacer Fabric
- Removing and installing. Refer To BACKREST HEATING ELEMENT -Z7- / -Z9-, REMOVING AND INSTALLING, COMFORT SEAT .
