Overview - Backrest Cover And Cushion, Standard Seat/Sport Seat

WARNING: This page is about a different variant/trim than selected.

NOTE:

The Assembly Overview Is Based On A Manual Or Power Standard Or Sport Front Seat And Comfort Seat.

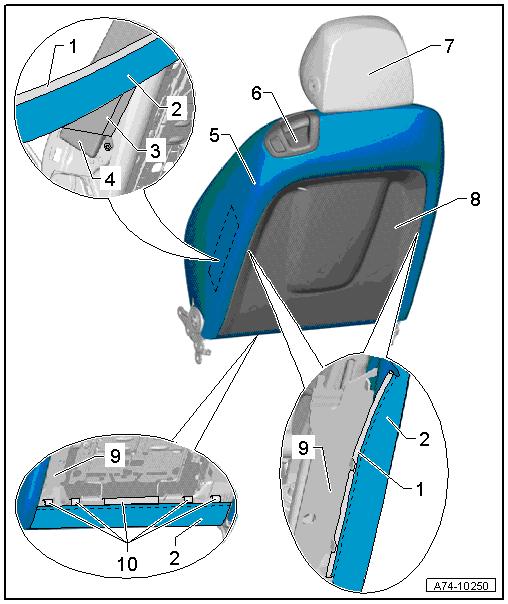

Fig 1: Backrest Cover And Upholstery Overview

Courtesy of AUDI OF AMERICA, LLC

Clamping Strip
- Sewn Into Cover
- To Engage The Cover In The Backrest Frame Side Trim
Cover
Pocket
- For Side Airbag
- Sewn Into Cover
Side Airbag
- Removing and installing. Refer To FRONT SIDE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
Cover
- With Padding
- Removing And Installing. Refer To BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
- Cover, Separating From Padding And Connecting. Refer To BACKREST COVER AND CUSHION, SEPARATING, STANDARD SEAT/SPORT SEAT .
Entry Assistance Trim
Standard Front Seat And Sport Front Seat (Manual)
- Removing and installing. Refer To ENTRY ASSISTANCE TRIM, REMOVING AND INSTALLING, MANUAL STANDARD SEAT .
  Standard Front Seat And Sport Front Seat (Power) And Comfort Front Seat.
- Removing and installing. Refer To ENTRY ASSISTANCE TRIM, REMOVING AND INSTALLING, POWER STANDARD SEAT .
Headrest
Manual
- Removing and installing. Refer To HEADREST, REMOVING AND INSTALLING, HEADREST WITH SLIDING LOCKING MECHANISM .
  Power
- Removing and installing. Refer To HEADREST, REMOVING AND INSTALLING, POWER HEADREST .
Backrest Cover
- Version without or with storage net
- Removing and installing. Refer To BACKREST COVER, REMOVING AND INSTALLING, TWO PIECE .
Backrest Frame Trim
- Clipped To The Backrest Frame
Retaining Channel
- Sewn Into Cover
- To Engage The Cover In The Backrest Frame Lower Trim
