Driver/Front Passenger Backrest Heating Element -Z7- / - Z9-, Removing And Installing, Standard Seat, Sport Seat: Installing
WARNING: This page is about a different variant/trim than selected.
-- Align the new backrest heating element on the padding.
CAUTION:
- Make sure the new backrest heating element is affixed to the old heating element.
- Remove the protective films in the bonding sequence for the heating element area.
- When removing the protective film, make sure the heating element is not damaged and that it is attached without wrinkles.

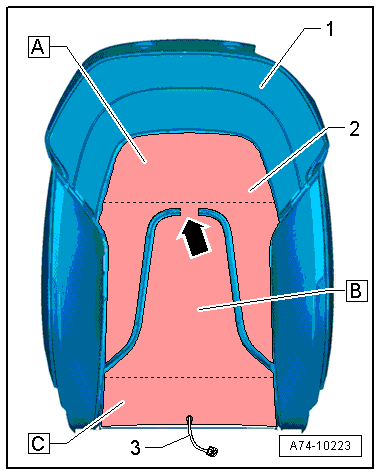

-- Bond the individual areas of the heating element in the sequence -A-, -B- and -C-.
-- Route the connecting wires to the individual heating surfaces in the base of the gaps -arrow-.
-- Pull the wire -3- through the slit in the padding -1-.
Install In Reverse Order Of Removal.
