Backrest Heating Element -Z7- / -Z9-, Removing And Installing, Comfort Seat: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove cover and cushion from backrest. Refer To BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
-- Disconnect the cover from the padding. Refer To BACKREST COVER AND CUSHION, SEPARATING, STANDARD SEAT/SPORT SEAT .

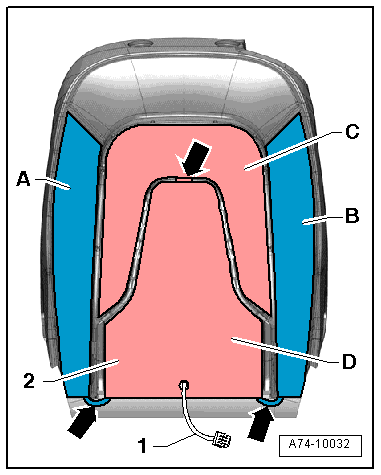

-- Cut the wire -1- off directly at the old lower backrest heating element -2-.
-- Cut through the connecting bars and wires -arrows-.
-- Carefully loosen the top and bottom of the backrest heating element -C and D- and remove.
NOTE:
The Spacer Fabric Must Not Be Damaged.
The heating elements -A and B- remain on the backrest bolsters and the new backrest heating element is bonded over them.
