Power Steering Pump, Removing And Installing, 6-Cylinder TFSI, With Dynamic Steering: Removing

WARNING: This page is about a different variant/trim than selected.

-- Place The Vehicle On A Hoist.

-- Remove The Engine Cover -1-.

Fig 1: Engine Cover

Courtesy of AUDI OF AMERICA, LLC

-- Extract the hydraulic fluid from the reservoir using :SMN372500 .

-- Clamp off the evacuation hose -1- and return hose -2- using the :3094 .

Fig 2: Locating Suction & Return Hose Clamping Location

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

The :3094 must not be secured on the return hose -2- near the check valve area. Otherwise the check valve will be damaged.
The check valve is located in the return hose -2- between the hose clamps -arrows-.

-- Remove The Noise Insulation. Refer To NOISE INSULATION, REMOVING AND INSTALLING .

-- Drain The Coolant. Refer To COOLANT, DRAINING AND FILLING [CAUA] , COOLANT, DRAINING AND FILLING [CFSA] , COOLANT, DRAINING AND FILLING [CAEB, CPMA, CAED, CPMB] , COOLANT, DRAINING AND FILLING [CALA] and COOLANT, DRAINING AND FILLING [CAED, CAEB, CPMB, CPMA] .

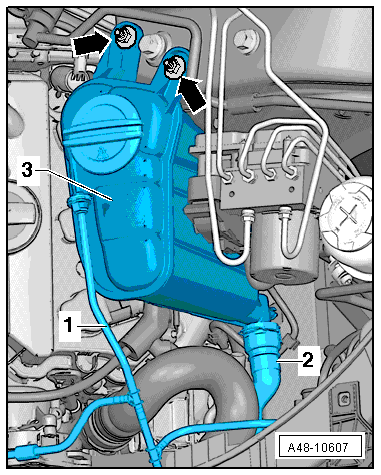

-- Disconnect the coolant lines -1 and 2- from the coolant reservoir. Remove the nuts -arrows- and remove the coolant reservoir -3- from its mount.

Fig 3: Identifying Coolant Reservoir

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector on the bottom of the coolant reservoir -3-. Move the coolant reservoir -3- to the side.

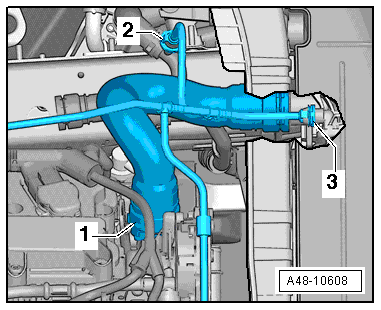

-- Remove the coolant hose -1 and 2- from the coolant pipe and move it to the side.

Fig 4: Identifying Coolant Hose & Line

Courtesy of AUDI OF AMERICA, LLC

-- Remove the coolant line -3- from the radiator and move it to the side.

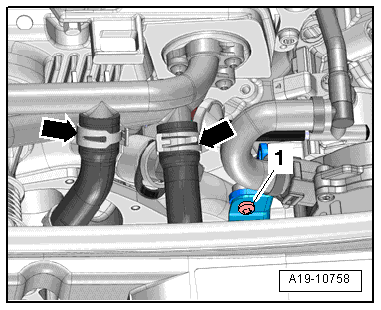

-- Remove the screw -1- on the upper coolant pipes.

Fig 5: Identifying Clamps -Arrows- To Coolant Hoses

Courtesy of AUDI OF AMERICA, LLC

Ignore the -arrows-.

-- Remove the screw -1- on the lower coolant pipes.

Fig 6: Locating Lower Coolant Pipe Bolt

Courtesy of AUDI OF AMERICA, LLC

Ignore the -arrows-.

NOTE:

Mark the direction of travel before removing ribbed belt. Reversed direction of travel with a used belt can lead to malfunctions. When installing the ribbed belt, make sure it is seated correctly on pulleys.

-- Move the tensioner in the direction of the -arrow- to release the tension on the ribbed belt.

Fig 7: Releasing Belt Tension

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ribbed belt from the power steering pump belt pulley. Refer to appropriate service information, see RIBBED BELT [FOR 3.2L ENGINES CALA], REMOVING AND INSTALLING, RIBBED BELT, REMOVING AND INSTALLING AND / OR RIBBED BELT, REMOVING AND INSTALLING , RIBBED BELT TENSIONER, REMOVING AND INSTALLING [FOR TRANSMISSION(S) 0B6] [FOR ENGINE(S) CAUA (4.2L)] .

-- Release The Tensioner And Remove The Tool.

-- Mark the position of the belt pulley to the hub by making a mark -arrow-.

Fig 8: Identifying Belt Pulley To Hub Marking

Courtesy of AUDI OF AMERICA, LLC

NOTE:

If The Power Steering Pump Will Be Replaced, Transfer The Marking From The Hub On The Old Pump To The New One.

Because of space restrictions, it is not possible to see the position of the belt pulley holes to the holes in the hub when installing.

-- Remove bolts -arrows-. Use :3212 as counter-hold.

Fig 9: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove belt pulley for vane pump.

-- Place the :VAS6208 under the power steering pump.

-- Disconnect the connector -2-.

Fig 10: Locating Union Nut & Connector

Courtesy of AUDI OF AMERICA, LLC

-- Remove the union nut -1- and pull the pressure line out of the power steering pump.

-- Seal the power steering pump and line connections using clean sealing plugs.

-- Remove the power steering pump from the bracket. Remove the front bolts -1- and rear bolt -2-.

Fig 11: Locating Power Steering Pump Bracket Bolts

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The bolt -2- cannot be seen in the bracket. The illustration shows it unscrewed.

-- Release the tension on the intake hose spring clamp -arrow- -2- on the reservoir -1- and remove the hose -2- from the reservoir.

Fig 12: Releasing Intake Hose Spring Clamp Tension

Courtesy of AUDI OF AMERICA, LLC

-- Remove the power steering pump and intake hose form the bracket.
