Fuse Panel A -SA- In Luggage Compartment, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

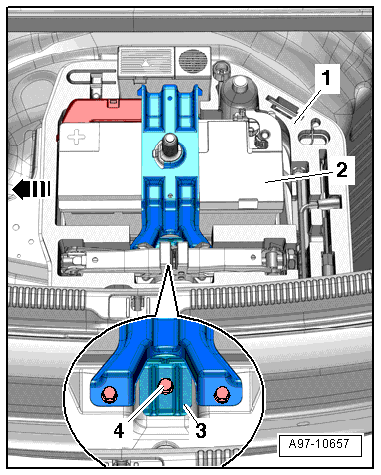

Fig 1: Identifying Fuse Panel A, Luggage Compartment Components

Courtesy of AUDI OF AMERICA, LLC

-- With The Ignition Switched Off, Disconnect The Battery Ground Cable. Refer To BATTERY, DISCONNECTING AND CONNECTING .

-- Remove The Vehicle Tools Mount -1-.

NOTE:

If It Not Possible To Remove Fuse Panel A From The Battery Terminal, Then Remove The Screw -4- On The Battery Bracket -3- And Pull The Battery -2- Just A Little To The Left -Arrow-.

-- Loosen The Nut -1- Several Turns And Remove The Battery Positive Wire Terminal Clamp With The Fuse Panel A From The Battery Terminal.

Fig 2: Fuse Box Cover, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Release The Spring -3- And Open The Cover -2- Over Fuse Panel A -arrow-.

-- Remove the wires -1, 5, 6 and 8-.

Fig 3: Fuse Panel A Components

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -Items 2 And 3-.

-- Remove The Battery Positive Cable Terminal -4- With Fuse Panel A From The Battery Terminal.

-- Remove The Battery Interrupt Igniter -N253- -Item 7-. Refer To BATTERY INTERRUPT IGNITER, REMOVING AND INSTALLING .

-- Remove The Fuse Panel A.

NOTE:

Check The Exact Assignment For Fuse Panel A In The Appropriate Wiring Diagram(s).
