Suppressor -C24-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove fuse panel B inside the engine compartment E-box. Refer to FUSE PANEL B -SB- IN ENGINE COMPARTMENT E-BOX, REMOVING AND INSTALLING .

NOTE:

The Connectors Do Not Need To Be Disconnected.

-- Cut The Cable Tie -2-.

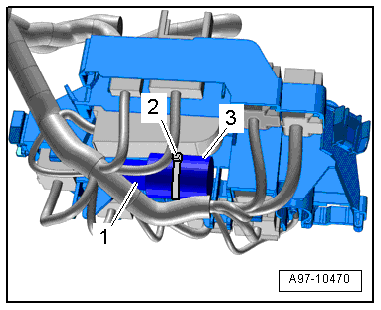

Fig 1: Identifying Suppressor Component -3-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect The Connector -1-.

-- Remove The Suppressor -C24- -Item 3-.
