Overview - Engine Compartment E-Box, Wire Junction, Battery Fuse Panel

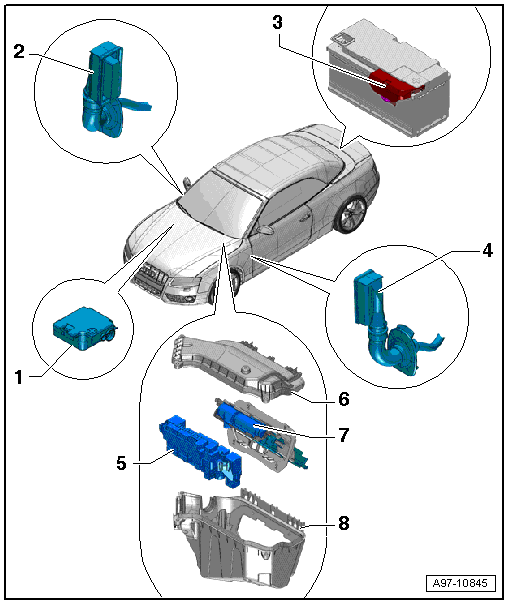

Fig 1: Engine Compartment E-Box, Wire Junction, Fuse Holder And Battery Overview

Courtesy of AUDI OF AMERICA, LLC

1. Terminal 30 Wire Junction 2 -TV22-
   • Removing and installing. Refer to TERMINAL 30 WIRE JUNCTION 2 -TV22-, REMOVING AND INSTALLING .
2. Right Door Cut-Off Connector
   • Disconnecting. Refer to DOOR CUT-OFF CONNECTOR, DISCONNECTING .
3. Fuse Panel A -SA-
   • In The Luggage Compartment On The Battery
   • Removing and installing. Refer to FUSE PANEL A -SA- IN LUGGAGE COMPARTMENT, REMOVING AND INSTALLING .
4. Left Door Cut-Off Connector
   • Disconnecting. Refer to DOOR CUT-OFF CONNECTOR, DISCONNECTING .
5. Fuse Panel B -SB-
   • Relay/Fuse Panel In Engine Compartment E-Box
   • Removing and installing. Refer to FUSE PANEL B -SB- IN ENGINE COMPARTMENT E-BOX, REMOVING AND INSTALLING .
   • With Suppressor -C24-, Removing And Installing. Refer To SUPPRESSOR -C24-, REMOVING AND INSTALLING .
6. Cover
   • For Engine Compartment E-Box
   • Tightening Specification. Refer to Fig 2
7. Engine Control Module
8. Engine Compartment E-box
   • Removing and installing. Refer to E-BOX, REMOVING AND INSTALLING .
   • Tightening Specification. Refer to Fig 2

Engine Compartment E-Box - Tightening Specification

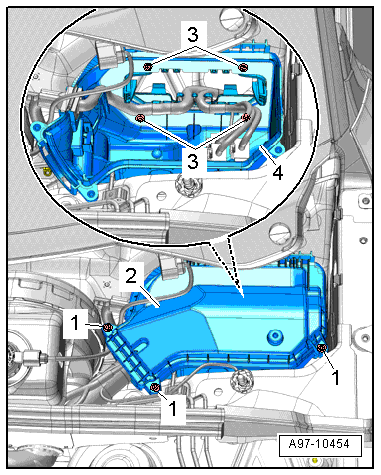

Fig 2: Identifying Engine Compartment E-Box Bolts

Courtesy of AUDI OF AMERICA, LLC

1. Screw - 3.5 Nm
2. Engine compartment E-box cover
3. Screw - 4.5 Nm
4. Engine Compartment E-box

Fuse Panel BSB in Engine Compartment E-Box - Tightening Specification

Fig 3: Identifying Fuse Panel B In Engine Compartment E-Box Components

Courtesy of AUDI OF AMERICA, LLC

1. Positive Cable -9 Nm
2. Fuse Panel B
3. Wire On The Back -9 Nm

Terminal 30 Wire Junction 2TV22 Tightening Specifications:

Fig 4: Identifying Terminal 30 Wire Junction 2 Components

Courtesy of AUDI OF AMERICA, LLC

1. Fan Wire - 7.5 Nm
2. Fan Wire -7.5 Nm
3. PTC Wire - 18 Nm
4. Nut - 7.5 Nm
5. E-Box Positive Cable -7.5 Nm
6. Battery Cable - 18 Nm
7. Battery Jump Start Terminal -U6- -20 Nm
8. Bolt - 7.5 Nm
9. Starter positive cable -18 Nm
10. Nut - 7.5 Nm

Fuse Panel ASA Tightening Specification

Fig 5: Fuse Panel A Components

Courtesy of AUDI OF AMERICA, LLC

1. Wire - 7.5 Nm
2. Nut - 9 Nm
3. Nut - 9 Nm
4. Fuse Panel A Inside The Luggage Compartment
5. Positive Cable To Engine - 7.5 Nm
6. Screw -3.5 Nm
7. Battery Interrupt Igniter -N253-. Refer to OVERVIEW - BATTERY INTERRUPT IGNITER .
8. Wire -18 Nm
