Hybrid BATTERY RECIRCULATION DOOR POSITIONING MOTOR 2 -V480-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn Off The Ignition.

-- Remove The Luggage Compartment Floor Covering. Refer To LUGGAGE COMPARTMENT TRIM PANELS .

-- Remove The Bolts -Arrows-.

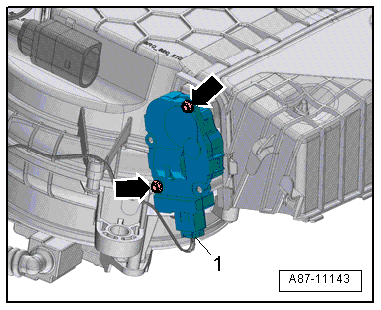

Fig 1: Hybrid Battery Recirculation Door Positioning Motor Connector And Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Hybrid Battery Recirculation Door Positioning Motor 2 -V480- and disconnect the connector -1-.
