Hybrid BATTERY RECIRCULATION DOOR POSITIONING MOTOR 1 -V479-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn Off The Ignition.

-- Remove The Luggage Compartment Floor Covering. Refer To LUGGAGE COMPARTMENT TRIM PANELS .

-- Disconnect The Connector -1-.

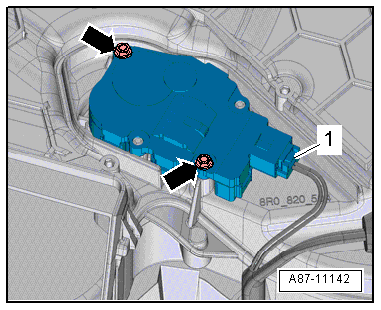

Fig 1: Hybrid Battery Recirculation Door Positioning Motor Connector And Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Remove The Bolts -Arrows- And Then Remove The Hybrid Battery Recirculation Door Positioning Motor 1 -V479-.
