Inner Tail Lamps, Removing And Installing: Removing

Fig 1: Trim Removal Wedge 3409

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Pry off the cover -1- using the Trim Removal Wedge:3409  -arrow-.

-- Disconnect the connector -2-.

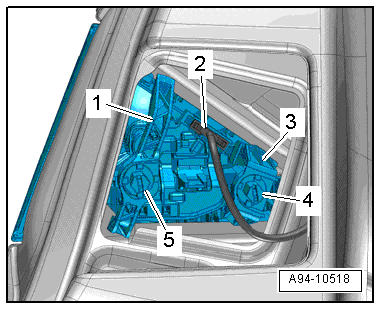

Fig 2: Identifying Clamping Brackets & Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -5- and remove the large clamping bracket -1-.

-- Remove the nut -3- and the small clamping bracket -4-.

-- Remove the inner tail lamp toward the outside.
