OVERVIEW - REAR LID TAIL LAMPS, LED, Through MY 2012

WARNING: This page is about a different variant/trim than selected.

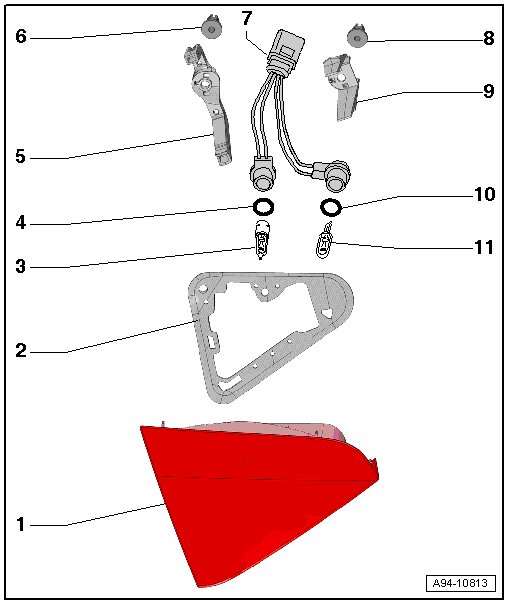

Fig 1: Exploded View Of REAR LID TAIL LAMPS (LED) Through MY 2012

GWWA94-10813

Courtesy of AUDI OF AMERICA, LLC

Inner Tail Lamps
- Removing and installing:
  - Audi A5. Refer to INNER TAIL LAMP, REMOVING AND INSTALLING, AUDI A5, LED .
  - Audi RS 5 INNER TAIL LAMP, REMOVING AND INSTALLING, AUDI RS 5, LED
Seal
- Replace if damaged.
Rear Fog Lamp Bulb
- Left Rear Fog Lamp Bulb -L46-
- Right Rear Fog Lamp Bulb -L47-
- EXTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING
- Changing bulbs:
  - Audi A5. Refer to LEFT/RIGHT REAR FOG LAMP BULB -L46- / -L47-, REMOVING AND INSTALLING, AUDI A5, LED
  - Audi RS 5. Refer to LEFT/RIGHT REAR FOG LAMP BULB -L46- / -L47-, REMOVING AND INSTALLING, AUDI RS 5, LED
O-Ring
Large Clamping Bracket
- For securing tail lamp assembly to the rear lid
Nut
- EXTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING
Central Connector
- For lamp sockets
Nut
- EXTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING
Small Clamping Bracket
- For securing tail lamp assembly to the rear lid
O-Ring
Back-Up Lamp Bulb
- Left Back-Up Lamp Bulb -M16-
- Right Back-Up Lamp Bulb -M17-
- EXTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING
- W16W
- Changing bulbs:
  - Audi A5. Refer to LEFT/RIGHT BACK-UP LAMP BULB -M16- / -M17-, REMOVING AND INSTALLING, AUDI A5, LED
  - Audi RS 5. Refer to LEFT/RIGHT BACK-UP LAMP BULB -M16- / -M17-, REMOVING AND INSTALLING, AUDI RS 5, LED
