Overview - Parking Aid: Notes

WARNING: This page is about a different variant/trim than selected.

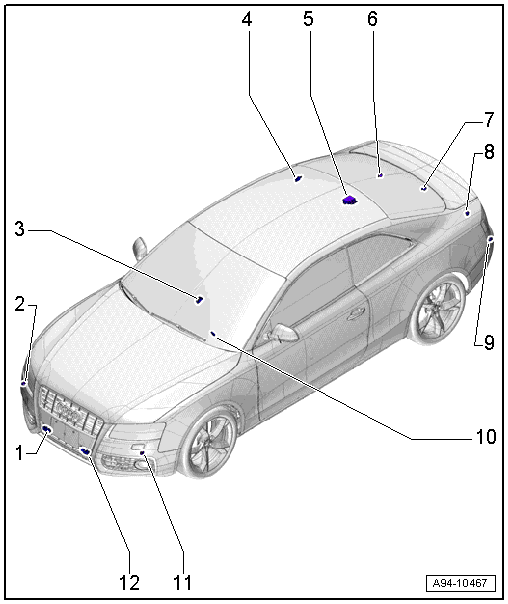

Fig 1: Parking Aid Overview

Courtesy of AUDI OF AMERICA, LLC

Right Front Center Parking Aid Sensor -G253-
- Removing and installing:
  - Audi A5 Through MY 2011, USA Through MY 2012. Refer to FRONT PARKING AID SENSOR -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING, AUDI A5 .
  - Audi A5 From MY 2012, USA From MY 2013. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING, AUDI A5
  - Audi RS 5 Through MY 2011, USA Through MY 2012. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING, AUDI RS 5 .
  - Audi RS 5 From MY 2012, USA From MY 2013. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING, AUDI RS 5
Right Front Parking Aid Sensor -G252-
- Removing and installing:
  - Audi A5 Through MY 2011, USA Through MY 2012. Refer to FRONT PARKING AID SENSOR -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING, AUDI A5 .
  - Audi A5 From MY 2012, USA From MY 2013. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING, AUDI A5
  - Audi RS 5 Through MY 2011, USA Through MY 2012. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING, AUDI RS 5 .
  - Audi RS 5 From MY 2012, USA From MY 2013. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING, AUDI RS 5

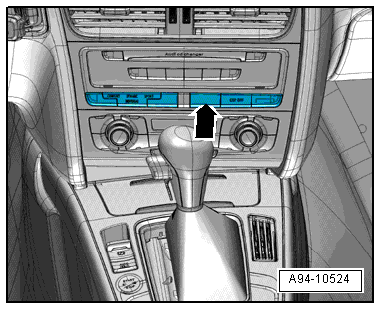

Parking Aid Button -E266-
- Only for 8-channel parking aid
- Component location. Refer to Figure
Rear Parking Aid Warning Buzzer -H15-
COUPE
- Removing and installing. Refer to REAR PARKING AID WARNING BUZZER -H15-, REMOVING AND INSTALLING, COUPE .
  SPORTBACK
- Removing and installing. Refer to REAR PARKING AID WARNING BUZZER -H15-, REMOVING AND INSTALLING, SPORTBACK .
Parking Aid Control Module -J446-
- Depending on the version From MY 2012, USA From MY 2013, it is integrated in the Vehicle Electrical System Control Module -J519-.
  Vehicles Without A Trailer Hitch
- Removing and installing. Refer to PARKING AID CONTROL MODULE -J446-, REMOVING AND INSTALLING, WITHOUT TRAILER HITCH .
  Vehicles With A Trailer Hitch
- Removing and installing. Refer to PARKING AID CONTROL MODULE -J446-, REMOVING AND INSTALLING, WITH TRAILER HITCH .
Right Rear Parking Aid Sensor -G206-
COUPE
- Removing and installing. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING, COUPE .
  SPORTBACK
- Removing and installing. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING, SPORTBACK .
Right Rear Center Parking Aid Sensor -G205-
COUPE
- Removing and installing. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING, COUPE .
  SPORTBACK
- Removing and installing. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING, SPORTBACK .
Left Rear Center Parking Aid Sensor -G204-
COUPE
- Removing and installing. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING, COUPE .
  SPORTBACK
- Removing and installing. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING, SPORTBACK .
Left Rear Parking Aid Sensor -G203-
COUPE
- Removing and installing. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING, COUPE .
  SPORTBACK
- Removing and installing. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206-, REMOVING AND INSTALLING, SPORTBACK .
Front Parking Aid Warning Buzzer -H22-
- Only for 8-channel parking aid
- Removing and installing. Refer to FRONT PARKING AID WARNING BUZZER -H22-, REMOVING AND INSTALLING .
Left Front Parking Aid Sensor -G255-
- Removing and installing:
  - Audi A5 Through MY 2011, USA Through MY 2012. Refer to FRONT PARKING AID SENSOR -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING, AUDI A5 .
  - Audi A5 From MY 2012, USA From MY 2013. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING, AUDI A5
  - Audi RS 5 Through MY 2011, USA Through MY 2012. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING, AUDI RS 5 .
  - Audi RS 5 From MY 2012, USA From MY 2013. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING, AUDI RS 5
Left Front Center Parking Aid Sensor -G254-
- Removing and installing:
  - Audi A5 Through MY 2011, USA Through MY 2012. Refer to FRONT PARKING AID SENSOR -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING, AUDI A5 .
  - Audi A5 From MY 2012, USA From MY 2013. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING, AUDI A5
  - Audi RS 5 Through MY 2011, USA Through MY 2012. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING, AUDI RS 5 .
  - Audi RS 5 From MY 2012, USA From MY 2013. Refer to FRONT PARKING AID SENSORS -G252- / -G253- / -G254- / -G255-, REMOVING AND INSTALLING, AUDI RS 5
