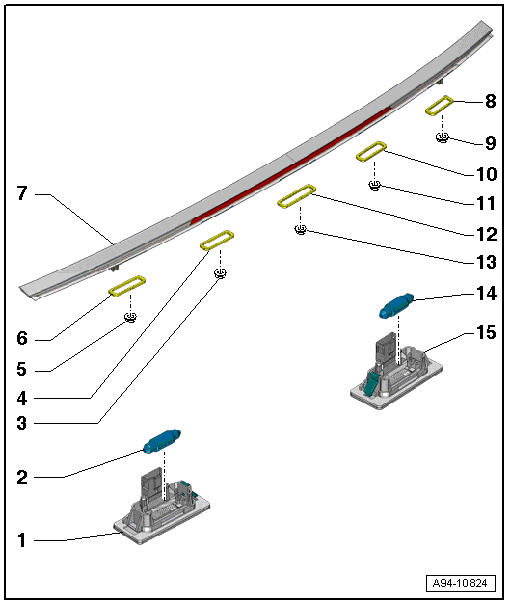

Overview - High-Mounted Brake Lamp And License Plate Lamp, SPORTBACK: Notes
WARNING: This page is about a different variant/trim than selected.
- Left License Plate Lamp
- There are different versions.
- Removing and installing. Refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING, SPORTBACK .
- Left License Plate Lamp -X4-
- Depending on the date of manufacture
- 12 V, 5 W
- Bulb, Replacing. Refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING, SPORTBACK .
- Nut

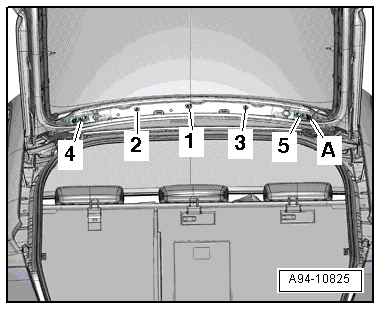

- Tightening Specification and sequence. Refer to Figure
- Small Seal
- self-adhesive
- Replacing
- For the correct seals.
- Nut
- Tightening Specification and sequence. Refer to Figure
- Small Seal
- Self-adhesive
- Replacing
- For the correct seals.
- High-Mounted Brake Lamp
- With High-Mounted Brake Lamp Bulb -M25-
- Removing and installing. Refer to High-Mounted Brake Lamp Bulb -M25-, REMOVING AND INSTALLING, SPORTBACK .
- Small Seal
- Self-adhesive
- Replacing
- For the correct seals.
- Nut
- Tightening Specification and sequence. Refer to Figure
- Small Seal
- Self-adhesive
- Replacing
- For the correct seals.
- Nut
- Tightening Specification and sequence. Refer to Figure
- Large Seal
- Self-adhesive
- Replacing
- For the correct seals.
- Nut
- Tightening Specification and sequence. Refer to Figure
- Right License Plate Lamp -X5-
- Depending on the date of manufacture
- 12 V, 5 W
- Bulb, Replacing. Refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING, SPORTBACK .
- Right License Plate Lamp
- There are different versions.
- Removing and installing. Refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING, SPORTBACK .
