Left/Right Front Turn Signal Bulb -M5- / -M7-, Removing And Installing, Halogen Headlamps, Through 10/2008: Removing

Fig 1: Identifying Turn Signal/Parking Lamp Housing Cover -1- From Headlamp Housing -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove The Headlamp Housing. Refer To HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMPS, Through MY 2012 .

-- Remove The High Beam Housing Cover -1- From The Headlamp Housing -arrow-.

-- Turn The Socket -1- Counterclockwise -Arrow- And Remove It From The Housing.

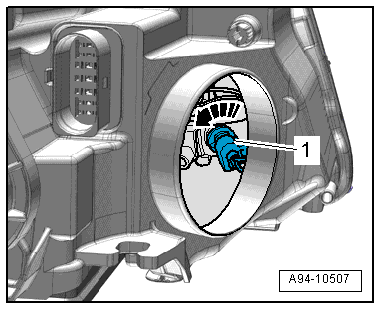

Fig 2: Turning Socket -1- Counterclockwise -Arrow- & Remove From Housing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb -2- from the socket -1-.

Fig 3: Identifying Bulb -2- & Socket -1-

Courtesy of AUDI OF AMERICA, LLC
