Headlamp Housing Repair Kit, Installing, Halogen Headlamp, Through 10/2008: Procedure
WARNING: This page is about a different variant/trim than selected.

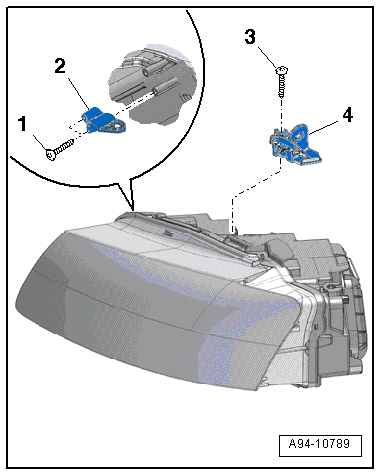

- Tightening Specification. Refer to Figure.
-- Remove headlamp with broken mounting tab. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMPS, Through MY 2012 .
-- Remove remains of broken mounting tab at headlamp housing.
-- Place mounting straps -2 and 4- from repair kit on headlamp housing and secure tabs with straps -1 and 3-.
