Left/Right Daytime Running Lamp Bulb -L174- / -L175-, Removing And Installing, Halogen Headlamps, Through 10/2008: Removing

Fig 1: Identifying Turn Signal/Parking Lamp Housing Cover -1- From Headlamp Housing -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMPS, Through MY 2012 .

-- Remove the high beam/turn signal housing cover -1- from the headlamp housing -arrow-.

-- Remove the bulb -1- from the spring clips.

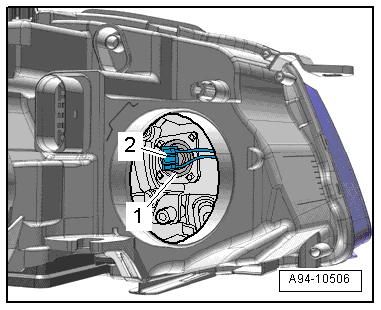

Fig 2: Identifying Bulb -1- & Electrical Connector -2-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the electrical connector -2- on the high beam bulb.
