FOG LAMP, REMOVING AND INSTALLING, Through MY 2012: Removing

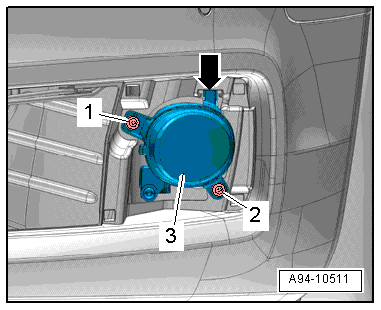

Fig 1: Identifying Fog Lamp & Screws

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Remove The Air Intake Grille. Refer To BUMPER COVER, REMOVING AND INSTALLING, AUDI RS5 /AIR INTAKE GRILLE, REMOVING AND INSTALLING, AUDI RS5 .

-- Remove the bolts -1- and -2-.

-- Remove the fog lamp -3- from the bumper cover while guiding the retaining tab -arrow- out of the mount.

-- Disconnect the connector.
