Overview - Lane Change Assistance: SPORTBACK

WARNING: This page is about a different variant/trim than selected.

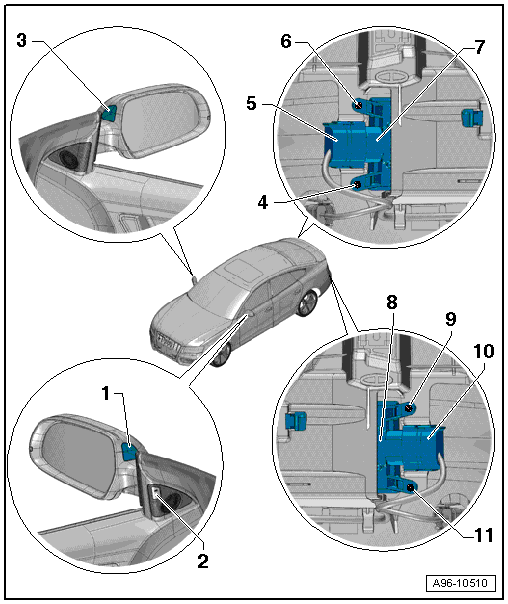

Fig 1: Lane Change Assistance Overview 5 Door
GWWA96-10510Courtesy of AUDI OF AMERICA, LLC
  1. Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror -K233-
  2. Lane Change Assistance Button -E530-
  3. Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror -K234-
  4. Screw
    • 3.5 Nm
  5. Connector
  6. Screw
    • 3.5 Nm
  7. Lane Change Assistance Control Module -J769-
  8. Lane Change Assistance Control Module 2 -J770-
  9. Screw
    • 3.5 Nm
  10. Connector
  11. Screw
    • 3.5 Nm
