Selector Lever Transmission Range Position Display Unit -Y26-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

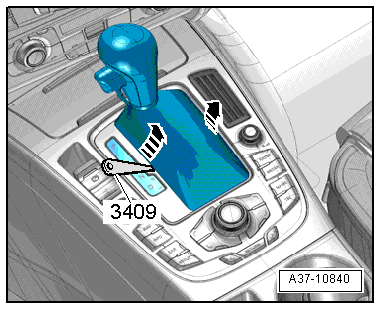

Fig 1: Identifying Selector Lever Transmission Range Position Display Unit, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Shift the selector lever into the "S" position.

-- Turn off the ignition.

-- Carefully pry the selector lever boot out at the side using a Trim Removal Wedge:3409 or a small screwdriver -arrows-.

-- Fold the selector lever boot upward.

-- Release the spring -2- and remove the Selector Lever Transmission Range Position Display Unit -Y26- -item 1- -arrow-.

Fig 2: Releasing Retaining Spring And Removing Selector Lever Transmission Range (TR) Position Display Y26 Upward

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector.
