Left/Right Rear Entry Lamp -W33- / -W34-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

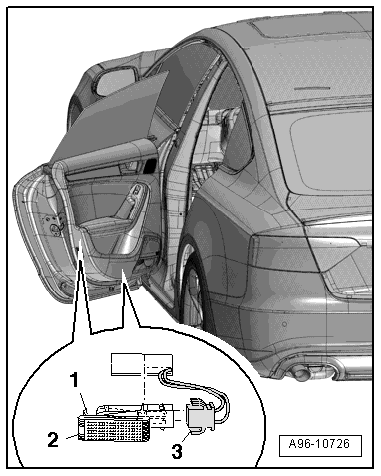

Fig 1: Rear Entry And Door Warning Lamps -W33- / -W34- / -W37- / -W38-
GWWA96-10726Courtesy of AUDI OF AMERICA, LLC

-- Press the retaining tab -1- in using a flat-head screwdriver and pry the door warning lamp or entry lamp -2- out.

-- Disconnect the connector -3-.

Door Warning Lamps:

Fig 2: Prying Off Cover On Door Safety Lamp
GWWA96-0481Courtesy of AUDI OF AMERICA, LLC

-- Carefully pry out the cover over the lamp -arrow-.

Entry Lamps:

Fig 3: Pulling Cover Off Above Light Bulb
GWWA96-0666Courtesy of AUDI OF AMERICA, LLC

-- Release the clips -arrows- and remove the cover -1- over the bulb.

Continuation For All Vehicles:

Fig 4: Door Safety Light/Entry Light Bulb
GWWA96-0599Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb -1- on the rear side of the door warning lamp or entry lamp from the socket -2-.
