Left/Right Front Entry Lamp -W31- / -W32-, Removing And Installing, Coupe: Removing

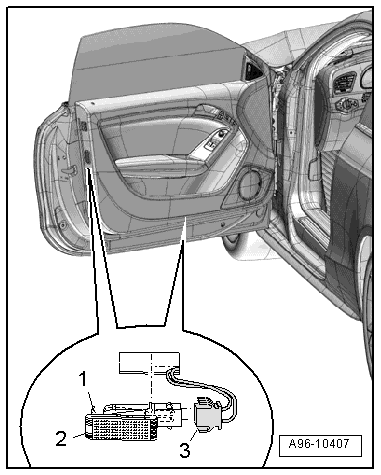

Fig 1: Identifying Front Entry Lamps And Door Warning Lamps

Courtesy of AUDI OF AMERICA, LLC

-- Press the retaining tab -1- in using a flat-head screwdriver and pry the door warning lamp or entry lamp -2- out.

-- Disconnect the connector -3-.

-- Release the clips -arrows- if applicable and remove the cover -1- over the bulb.

Fig 2: Pulling Cover Off Above Light Bulb

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb -1- on the rear side of the door warning lamp or entry lamp from the socket -2-.

Fig 3: Door Safety Light/Entry Light Bulb

Courtesy of AUDI OF AMERICA, LLC
