Glove Compartment Lamp -W6-, Removing And Installing: Removing

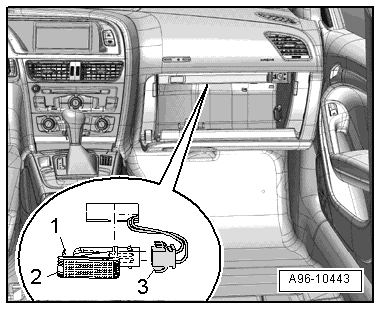

Fig 1: Identifying Glove Compartment Lamp

Courtesy of AUDI OF AMERICA, LLC

-- Turn the headlamp switch to "0".

-- Press in the tab -1- using a flat-head screwdriver and pry out the glove compartment lamp -2-.

-- Disconnect the connector -3-.

-- To replace the bulb, release the clips -arrows- and remove cover -1- over the bulb.

Fig 2: Pulling Cover Off Above Light Bulb

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb -1- on the rear side of the glove compartment light from the socket -2-.

Fig 3: Door Safety Light/Entry Light Bulb

Courtesy of AUDI OF AMERICA, LLC
