Component Location Overview - Roof Trim Panel Lamps

WARNING: This page is about a different variant/trim than selected.

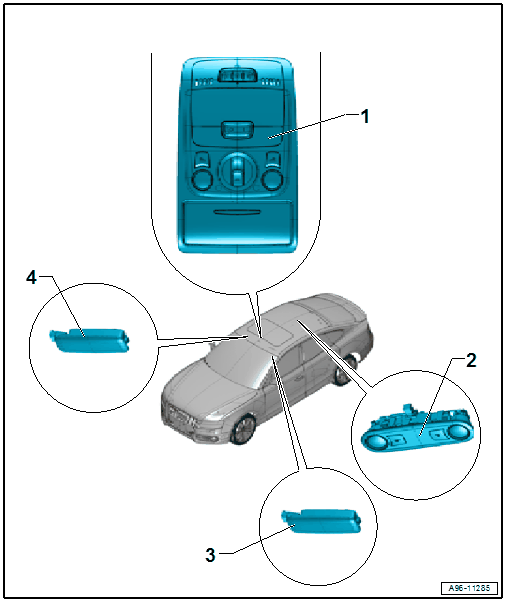

Fig 1: Component Location Overview - Roof Trim Panel Lamps

Courtesy of AUDI OF AMERICA, LLC

Front Interior Lamp/Reading Lamp
- Front Interior Lamp -W1-
- Front Passenger Reading Lamp -W13-
- Driver Reading Lamp -W19-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Interior lamp bulb, removing and installing. Refer to Front Interior Lamp -W1-, REPLACING .
- Reading lamp bulb, removing and installing. Refer to DRIVER/FRONT PASSENGER READING LAMP -W13- / -W19-, REPLACING .
Rear Interior Lamp
- Left Rear Interior Lamp -W47-
- Right Rear Interior Lamp -W48-
- Rear interior lamps, removing and installing. Refer to REAR INTERIOR LAMP, REMOVING AND INSTALLING .
- Rear interior/reading lamps, removing and installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
Left Vanity Mirror Illumination
- Vanity Mirror Illumination Bulb -L31-
- 12 V, 5 W
- Removing and installing. Refer to Vanity Mirror Illumination Bulb -L31-, REMOVING AND INSTALLING .
Right Vanity Mirror Illumination
- Vanity Mirror Illumination Bulb -L31-
- 12 V, 5 W
- Removing and installing. Refer to Vanity Mirror Illumination Bulb -L31-, REMOVING AND INSTALLING .
