Component Location Overview - Rear Door Lamps

WARNING: This page is about a different variant/trim than selected.

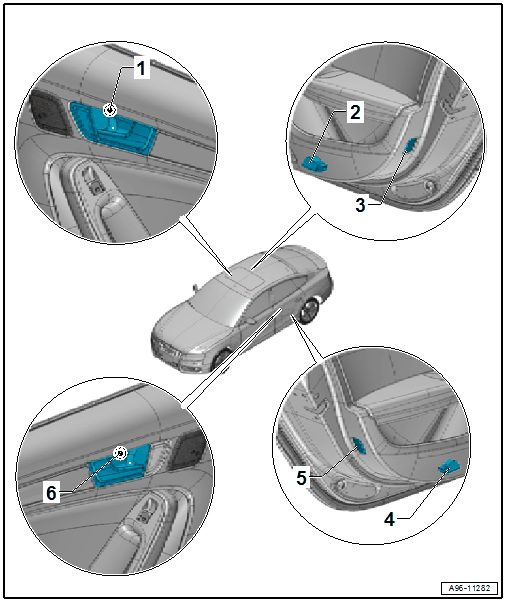

Fig 1: Component Location Overview - Rear Door Lamps

Courtesy of AUDI OF AMERICA, LLC

Right Rear Door Opener Illumination Bulb -L111-
- Removing and installing. Refer to LEFT/RIGHT REAR DOOR OPENER ILLUMINATION BULB -L110- / -L111-, REMOVING AND INSTALLING .
Right Rear Entry Lamp -W34-
- 12 V, 3 W
- Removing and installing. Refer to LEFT/RIGHT REAR ENTRY LAMP -W33- / -W34-, REMOVING AND INSTALLING .
Right Rear Door Warning Lamp -W38-
- 12 V, 3 W
- Removing and installing. Refer to LEFT/RIGHT REAR ENTRY LAMP -W33- / -W34-, REMOVING AND INSTALLING .
Left Rear Entry Lamp -W33-
- 12 V, 3 W
- Removing and installing. Refer to LEFT/RIGHT REAR ENTRY LAMP -W33- / -W34-, REMOVING AND INSTALLING .
Left Rear Door Warning Lamp -W37-
- 12 V, 3 W
- Removing and installing. Refer to LEFT/RIGHT REAR ENTRY LAMP -W33- / -W34-, REMOVING AND INSTALLING .
Left Rear Door Opener Illumination Bulb -L110-
- Removing and installing. Refer to LEFT/RIGHT REAR DOOR OPENER ILLUMINATION BULB -L110- / -L111-, REMOVING AND INSTALLING .
