Component Location Overview - Luggage Compartment Lamps

WARNING: This page is about a different variant/trim than selected.

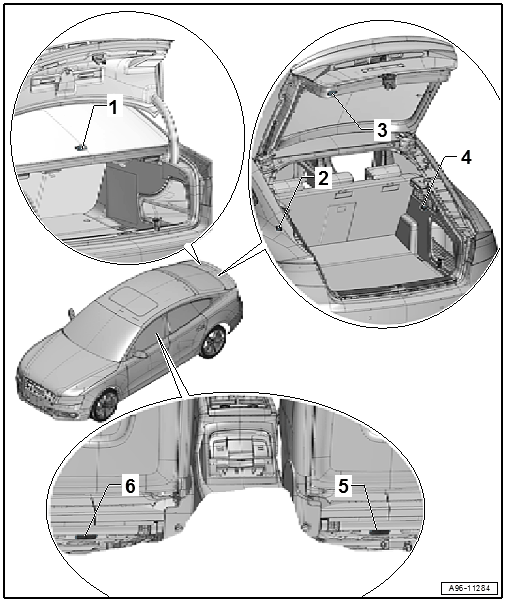

Fig 1: Component Location Overview - Luggage Compartment Lamps
GWWA96-11284Courtesy of AUDI OF AMERICA, LLC
  1. Luggage Compartment Lamp -W3-
  2. Left Luggage Compartment Lamp -W18-
  3. Luggage Compartment Lamp -W3- inside the rear lid
  4. Luggage Compartment Lamp -W3- right
  5. Right Rear Footwell Lamp -W46-
  6. Left Rear Footwell Lamp -W45-
