Component Location Overview - Instrument Panel Lamps

WARNING: This page is about a different variant/trim than selected.

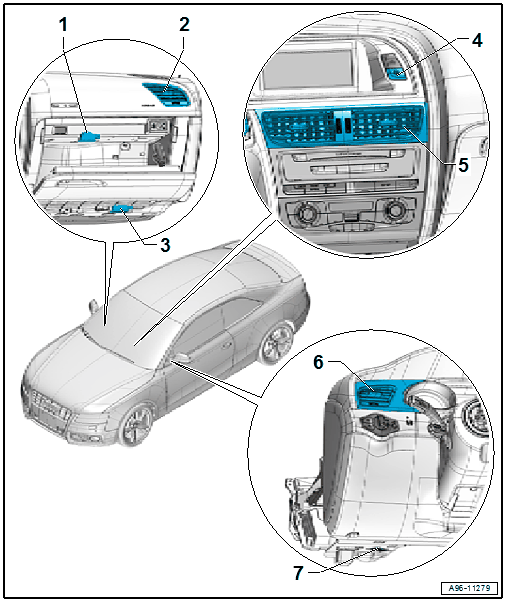

Fig 1: Component Location Overview - Instrument Panel Lamps

Courtesy of AUDI OF AMERICA, LLC

Glove Compartment Lamp -W6-
- 12 V, 5 W
- Removing and installing. Refer to Glove Compartment Lamp -W6-, REMOVING AND INSTALLING .
Right Instrument Panel Vent Illumination Bulb -L69-
- Removing and installing. Refer to LEFT/RIGHT INSTRUMENT PANEL VENT ILLUMINATION BULB -L67- / -L69-, REMOVING AND INSTALLING .
Right Front Footwell Illumination Bulb -L152-
- Removing and installing. Refer to Left Front Footwell Illumination Bulbs -L151- /Right Front Footwell Illumination Bulbs -L152-, REMOVING AND INSTALLING .
Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- Removing and installing. Refer to Front Passenger Airbag -Disabled- Indicator Lamp -K145-, REMOVING AND INSTALLING .
Center Instrument Panel Vent Illumination Bulb -L68-
- Inside the center instrument panel vent. Cannot be replaced separately if faulty.
- Center Instrument Panel Vent, Removing and installing. Refer to INSTRUMENT PANEL .
Left Instrument Panel Vent Illumination Bulb -L67-
- Removing and installing. Refer to LEFT/RIGHT INSTRUMENT PANEL VENT ILLUMINATION BULB -L67- / -L69-, REMOVING AND INSTALLING .
Left Front Footwell Illumination Bulb -L151-
- Removing and installing. Refer to Left Front Footwell Illumination Bulbs -L151- /Right Front Footwell Illumination Bulbs -L152-, REMOVING AND INSTALLING .
