Component Location Overview - Center Console Lamps

WARNING: This page is about a different variant/trim than selected.

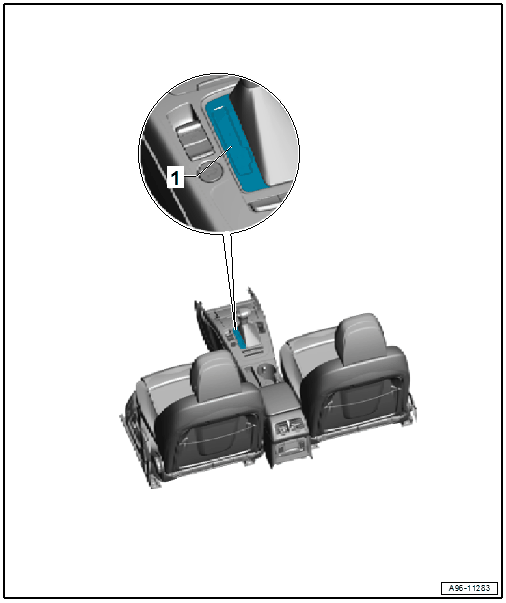

Fig 1: Identifying Center Console Lamps
GWWA96-11283Courtesy of AUDI OF AMERICA, LLC
  1. Selector Lever Transmission Range Position Display Unit -Y26- with Selector Lever Scale Illumination Bulb -L101-
