Sunroof Tilt Button 1 -E582-, Removing And Installing, Coupe: Removing

WARNING: This page is about a different variant/trim than selected.

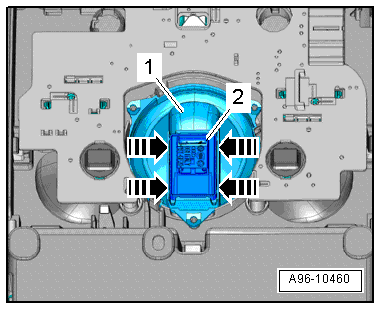

Fig 1: Removing Sunroof Tilt Button 1 -E582-, 2-Door
GWWA96-10460Courtesy of AUDI OF AMERICA, LLC

-- Remove the front interior lamp/reading lamp. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

-- Carefully release the retaining hooks -arrows- using a small screwdriver.

-- Remove the Sunroof Tilt Button 1 -E582- -item 2- backwards out of the trim -1-.
