Rear Lid Remote Unlock Switch -E188-, Removing And Installing: Removing

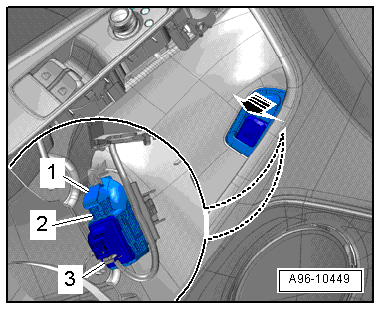

Fig 1: Removing Rear Lid Remote Unlock Switch

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANELS .

-- Disconnect the connector -3- from the rear lid remote unlock switch.

-- Release the clip -1- and press the trim -2- with the rear lid remote unlock switch out of the door trim -arrow-.

-- Carefully release the retaining hooks -arrows- using a small screwdriver.

Fig 2: Releasing Retaining Hooks -Arrows- Using A Small Screwdriver

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear lid remote unlock switch -item 1- from the trim -2-.
