Left/Right Rear Power Window Switch In Rear Door -E52- / -E54-, Removing And Installing: Removing

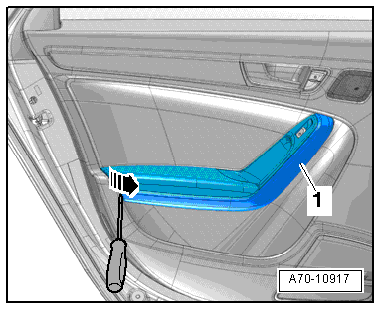

Fig 1: Insert A Screwdriver Into Hole On Bottom Of The Trim -1

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Insert a screwdriver in the hole at the bottom of the trim -1-.

-- Beginning at the rear, carefully pry the trim out of the door trim -arrow-.

-- Carefully release the retaining hooks -arrows- using a small screwdriver.

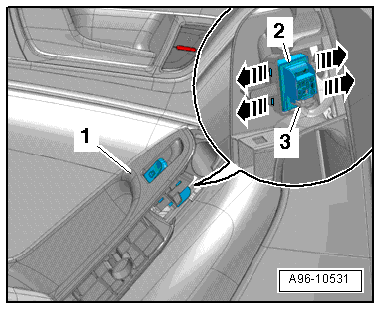

Fig 2: Carefully Release Retaining Hooks

Courtesy of AUDI OF AMERICA, LLC

-- Remove the power window switch -2- from the switch mount -1-.

-- Disconnect the connector -3-.
