Left/Right Rear Interior Locking Switch -E273- / -E274-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

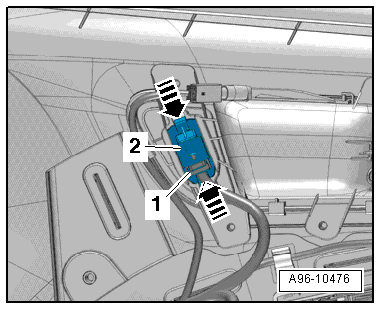

Fig 1: Identifying Front Interior Locking Switches, Removal
GWWA96-10476Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Remove the rear door trim panel. .

-- Disconnect the connector -1-.

-- Release the clips -arrows- and press the interior locking button -2- out of the door trim panel.
