Left/Right Rear Heated Seat Regulating Switch -E128- /:E129, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

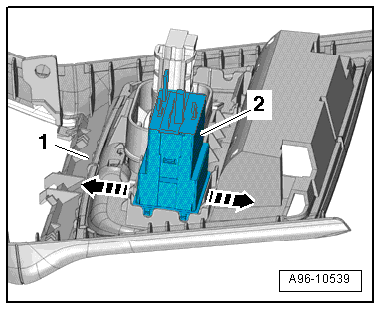

Fig 1: Identifying Rear Heated Seat Regulating Switches, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear center console trim. Refer to CENTER CONSOLE .

-- Release the clips -arrows- and remove the rear heated seat regulating switch -2- from the center console rear trim -1-.
