Cigarette Lighter Illumination Bulb -L28-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

Fig 1: Cigarette Lighter Illumination

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front ashtray. Refer to CENTER CONSOLE .

-- Pry out the cover -1- over the Cigarette Lighter Illumination Bulb -L28- -arrows-.

-- Carefully pry the Cigarette Lighter Illumination Bulb -L28- -item 3- in the direction of the -arrow- out of the Cigarette Lighter -U1- -item 2- using a narrow screwdriver -1-.

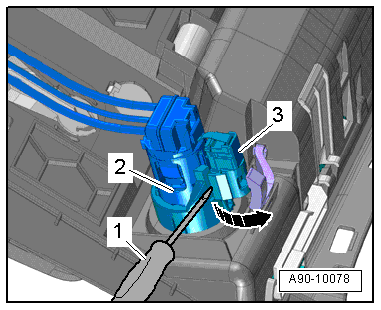

Fig 2: Removing Cigarette Lighter Illumination

Courtesy of AUDI OF AMERICA, LLC
