12 V Socket 3 -U19-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

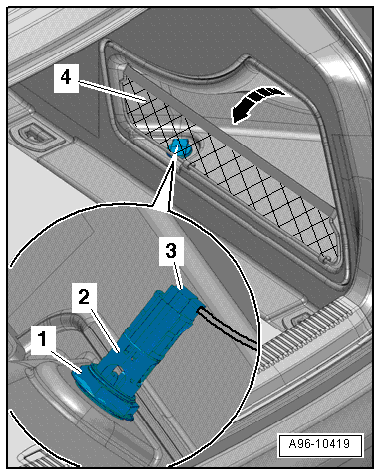

Fig 1: 12V Socket 3
GWWA96-10419Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Open the cover -4- on the right luggage compartment side trim -arrow-.

-- Disconnect the connector -3-.

-- Remove the nut -1-.

-- Remove the 12 V Socket 3 -U19- -2- from the right luggage compartment side trim panel cover.
