Alarm Horn -H12-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Alarm Horn, Removal

Courtesy of AUDI OF AMERICA, LLC

Vehicles through 05/2008:

-- Unclip and remove the plenum chamber covers -1- and -2-.

NOTE:

Ignore -item 3- and the -arrow-.

VEHICLES FROM 06/2008:

Fig 2: Identifying Plenum Chamber Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -3-.

-- Remove the clips -2- from the mount and remove the plenum chamber cover -1-.

Continuation For All Vehicles:

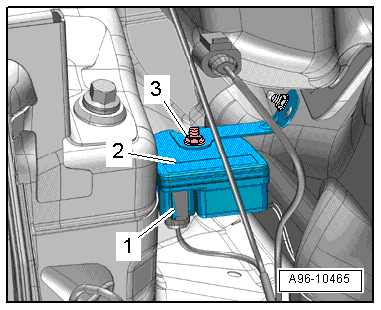

Fig 3: Identifying Alarm, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -3-.

-- Disconnect the connector -1-.

-- Remove the Alarm Horn -H12- -item 2- upward.
