Overview - Sill And Tunnel Side Trim, Bucket Seat: Notes

WARNING: This page is about a different variant/trim than selected.

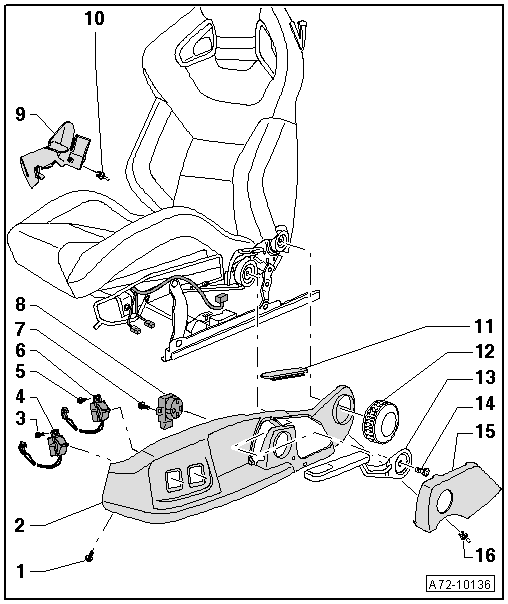

Fig 1: Exploded View Of Sill And Tunnel Side Trim

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 1.2 Nm
Sill-Side Trim
- Removing and installing. Refer to SILL SIDE TRIM, REMOVING AND INSTALLING, BUCKET SEAT .
Bolt
- 0.4 Nm
Button for Seat Bolster Inflation Adjustment
- Driver side: Driver Seat Bolster Inflation Adjustment Button -E587-
- Front passenger side: Front Passenger Seat Bolster Inflation Adjustment Button -E588-
- Removing and installing. Refer to SEAT BOLSTER AND BACKREST BOLSTER ADJUSTMENT BUTTON, REMOVING AND INSTALLING .
Bolt
- 0.4 Nm
Button for Backrest Bolster Inflation Adjustment
- Driver side: Driver Backrest Bolster Inflation Adjustment Button -E589-
- Front passenger side: Front Passenger Backrest Bolster Inflation Adjustment Button -E590-
- Removing and installing. Refer to SEAT BOLSTER AND BACKREST BOLSTER ADJUSTMENT BUTTON, REMOVING AND INSTALLING .
Bolt
- 0.4 Nm
Lumbar Support Adjustment Switch
- Driver side: Driver Seat Lumbar Support Adjustment Switch -E176-
- Front passenger side Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Removing and installing. Refer to SEAT BOLSTER AND BACKREST BOLSTER ADJUSTMENT BUTTON, REMOVING AND INSTALLING .
Tunnel-Side Trim
- Removing and installing. Refer to TUNNEL-SIDE TRIM, REMOVING AND INSTALLING, BUCKET SEAT .
Expanding Clip
Cover
Backrest Adjusting Wheel
- Removing and installing. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING, MANUAL STANDARD SEAT/SPORT SEAT .
Seat Height Adjustment Handle
- Removing and installing. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING, BUCKET SEAT .
Bolt
- Tightening specification. Refer to -item ) OVERVIEW - SEAT HEIGHT ADJUSTMENT, BUCKET SEAT - Bolt.
Outer Trim
- Removing and installing. Refer to OUTER TRIM, REMOVING AND INSTALLING .
Expanding Clip
