Overview - Front Standard Power Seat

WARNING: This page is about a different variant/trim than selected.

NOTE:

The Overview Is Based On The Driver Seat. The Passenger Seat Is Similar And The Components Are Installed Reversed From Left To Right.

The Illustration Does Not Show The Floor Covering And The Four-Way Lumbar Support.

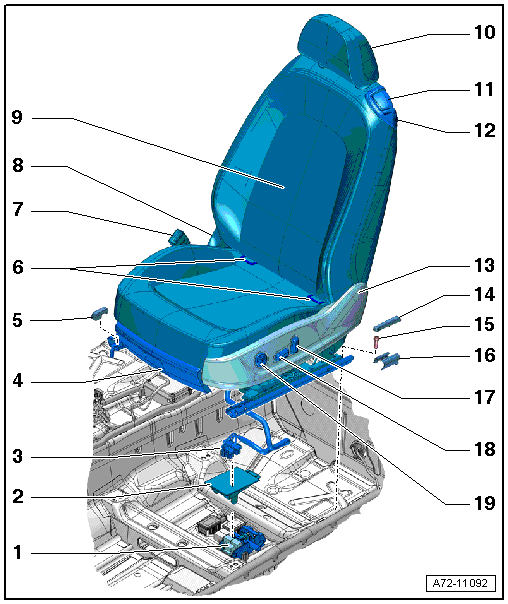

Fig 1: Exploded View Of Power Standard Front Seat

Courtesy of AUDI OF AMERICA, LLC

Connector Station
- Connector assignment. Refer to CONNECTOR STATION CONNECTORS .
Cover
- For the connector station
- Removing and installing. Refer to FRONT SEAT, MOVING INTO SERVICE POSITION .
Connector
- With a corrugated tube for the modular wiring routing
- Modular Wiring Routing Assembly Overview. Refer to OVERVIEW - MODULAR WIRING ROUTING
Storage Compartment
- Equipment levels
- Removing and installing. Refer to STORAGE COMPARTMENT, REMOVING AND INSTALLING .
Spindle Cover
- Clipped to the seat forward/back adjustment spindle
- Removing and installing. Refer to SEAT RAIL SPINDLE COVER, REMOVING AND INSTALLING .
- Quantity: 2
LATCH Child Seat Anchor
- Equipment levels
- For the front passenger seat only
- Removing and installing. Refer to FRONT CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
- For checking after an accident. Refer to CHILD SEAT ANCHORS, CHECKING AFTER A COLLISION .
Seat Belt Latch
- Removing and installing. Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
Tunnel-Side Trim
- Removing and installing. Refer to TUNNEL-SIDE TRIM, REMOVING AND INSTALLING, STANDARD SEAT, SPORT SEAT, SUPER SPORT SEAT .
Power Standard Front Seat
- Removing and installing. Refer to FRONT SEAT, REMOVING AND INSTALLING, POWER .
  Vehicles with:
  - Seat and backrest heating
Headrest
- Power
- Removing and installing. Refer to HEADREST, REMOVING AND INSTALLING, POWER HEADREST .
Entry Assistance Backrest Release
- Overview. Refer to OVERVIEW - ENTRY ASSISTANCE, STANDARD SEAT .
Button
- With entry assist
- Removing and installing. Refer to ENTRY ASSISTANCE BUTTON, REMOVING AND INSTALLING .
Sill-Side Trim
- Removing and installing. Refer to SILL-SIDE TRIM, REMOVING AND INSTALLING, POWER STANDARD SEAT, WITH OR WITHOUT MEMORY FUNCTION .
Cap
- Only behind on the seat rail, sill side
- Removing and installing. Refer to SEAT RAIL CAP, REMOVING AND INSTALLING .
Bolts
- 50 Nm
- Quantity: 4
Cover
- For the seat rail
- Removing and installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING, STANDARD SEAT, SPORT SEAT, SUPER SPORT SEAT .
- Quantity: 4
Actuator
- For backrest and headrest adjustment
- Actuator, Removing and Installing. Refer to BACKREST AND HEADREST ADJUSTMENT ACTUATOR, REMOVING AND INSTALLING .
- Control head, removing and installing. Refer to REMOVING AND INSTALLING THE SEAT ADJUSTMENT CONTROL HEAD
Actuator
- For seat adjustment
- Actuator, Removing and Installing. Refer to SEAT ADJUSTMENT ACTUATOR, REMOVING AND INSTALLING .
- Control head, removing and installing. Refer to REMOVING AND INSTALLING THE SEAT ADJUSTMENT CONTROL HEAD
Actuator
- For the lumbar support
- Lumbar Support Adjustment Switch, Removing and Installing. Refer to DRIVER/FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH -E176- / -E177-, REMOVING AND INSTALLING, STANDARD SEAT, SPORT SEAT, COMFORT SEAT .
- Four-way lumbar support removing and installing. Refer to LUMBAR SUPPORT, REMOVING AND INSTALLING, POWER FOUR-WAY LUMBAR SUPPORT .
