Overview - Backrest Release, Manual Standard Seat
WARNING: This page is about a different variant/trim than selected.
NOTE:
The Illustration Does Not Show The Spring Mat, The Four-Way Lumbar Support And The Seat Frame.

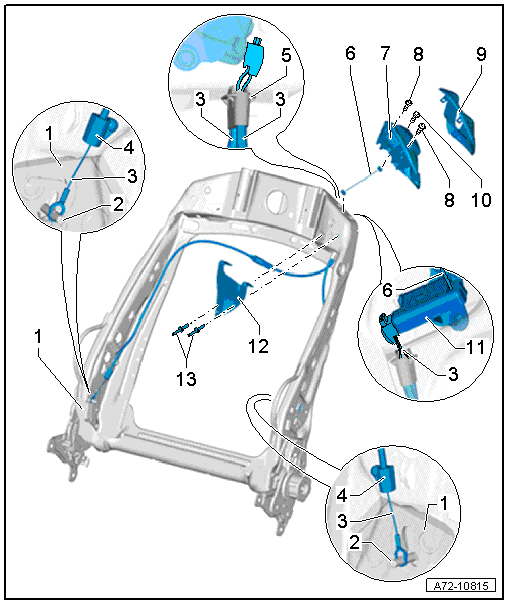

- Backrest Frame
- Bolts
- For the backrest release
- Both sides
- Component of the backrest hinge
- Release Cable
- For the backrest release
- One piece
- Removing and installing. Refer to BACKREST RELEASE CABLE, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
- Adjusting. Refer to BACKREST RELEASE CABLE, ADJUSTING, STANDARD SEAT, SPORT SEAT, SUPER SPORT SEAT .
- Bracket
- For the backrest release cable
- Quantity: 2
- Component of the release cable
- Riveted to backrest frame
- Mount
- For the backrest release cable
- Component of the release cable
- Clipped to the backrest frame
- Connecting Cable
- For the backrest release
- Between the handle and bracket
- Engaged in the handle and bracket
- Removing and installing. Refer to ENTRY ASSISTANCE CONNECTING CABLE, REMOVING AND INSTALLING .
- Handle
- With backrest release bracket
- Removing and installing. Refer to ENTRY ASSISTANCE HANDLE WITH BRACKET, REMOVING AND INSTALLING .
- Bolts
- 3.5 Nm
- Quantity: 2
- Entry Assistance Trim
- Removing and installing. Refer to ENTRY ASSISTANCE TRIM, REMOVING AND INSTALLING, MANUAL STANDARD SEAT .
- Bolt
- 3.5 Nm
- Bracket
- For the backrest release
- Riveted to backrest frame
- Removing and installing. Refer to BACKREST RELEASE BRACKET, REMOVING AND INSTALLING .
- Support Plate
- Riveted to backrest frame
- Different versions for different equipment
- Standard seat
- Comfort seat
- Sport seat
- Super sport seat
- Removing and installing. Refer to ENTRY ASSISTANCE SUPPORT PLATE, REMOVING AND INSTALLING .
- Rivet
- Quantity: 2
