Component Location Overview - Electric And Electronic Components, Power Standard Seat

WARNING: This page is about a different variant/trim than selected.

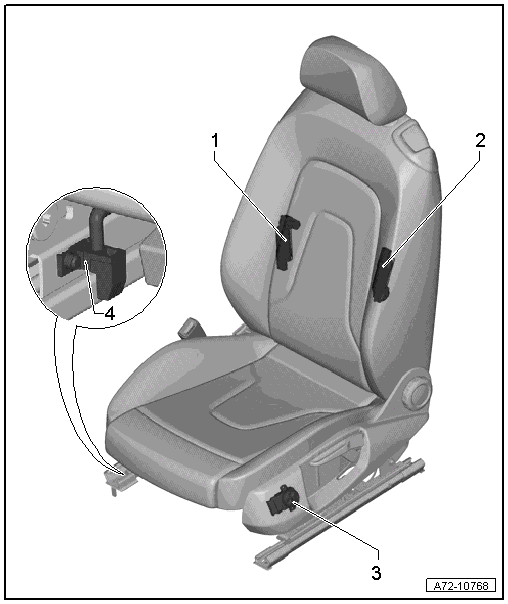

Fig 1: Identifying Electrical And Electronic Components

Courtesy of AUDI OF AMERICA, LLC

Lumbar Support Height Adjustment Motor
- Driver side: Driver Seat Lumbar Support Height Adjustment Motor -V129-
- Front passenger side: Front Passenger Seat Lumbar Support Height Adjustment Motor -V130-
- Removing and installing. Refer to LUMBAR SUPPORT ADJUSTMENT MOTORS -V125- / -V126- / -V129- / -V130-, REMOVING AND INSTALLING .
Lumbar Support Forward/Back Adjustment Motor
- Driver side: Driver Seat Lumbar Support Curvature Adjustment Motor -V125-
- Front passenger side: Front Passenger Seat Lumbar Support Curvature Adjustment Motor -V126-
- Removing and installing. Refer to LUMBAR SUPPORT ADJUSTMENT MOTORS -V125- / -V126- / -V129- / -V130-, REMOVING AND INSTALLING .
Lumbar Support Adjustment Switch
- Driver side: Driver Seat Lumbar Support Adjustment Switch -E176-
- Front passenger side Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Overview. Refer to OVERVIEW - LUMBAR SUPPORT ADJUSTMENT SWITCH .
Seat Position Sensor
- Driver side: Driver Seat Position Sensor -G553-
- Front passenger side: Front Passenger Seat Position Sensor -G554-
- Overview. Refer to OVERVIEW - SEAT POSITION SENSOR .
