Backrest Release Cable, Removing And Installing, Standard Seat/Sport Seat/Super Sport Seat: Removing
- Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
-- Turn on the ignition.
-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove The Front Seat:
- Standard seat and Sport seat (manual). Refer to FRONT SEAT, REMOVING AND INSTALLING, MANUAL .
- Standard seat, Sport seat (power) and Comfort seat. Refer to FRONT SEAT, REMOVING AND INSTALLING, POWER .
-- Attach the front seat to the Engine/Transmission Holder - Seat Repair Fixture:VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING, TWO PIECE .
-- Remove the backrest frame trim. Refer to BACKREST FRAME TRIM, REMOVING AND INSTALLING .
-- Remove The Head Restraints:
- Refer to HEADREST, REMOVING AND INSTALLING, HEADREST WITH SLIDING LOCKING MECHANISM .
- Refer to HEADREST, REMOVING AND INSTALLING, POWER HEADREST .
-- Remove the entry assistance trim. Refer to ENTRY ASSISTANCE TRIM, REMOVING AND INSTALLING, MANUAL STANDARD SEAT .
-- Remove the cover with padding. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
-- Remove side airbag. Refer to FRONT SIDE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
The Spring Mat Or Lumbar Support Does Not Need To Be Removed When Removing And Installing The Release Cables.
-- Using pliers, disengage the eyes -3- (quantity: 2) from the pins -4- (quantity: 2) on both sides.
-- Drill out rivets -2- on left and right brackets -1-.
5 - Backrest frame

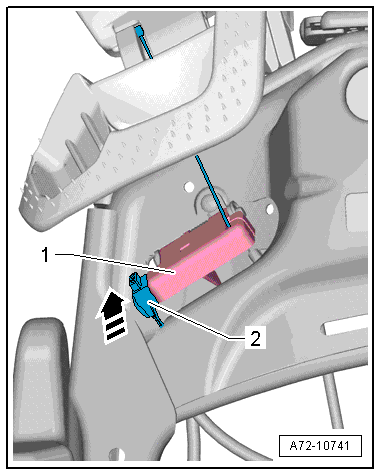

-- Unclip the end of the release cable -2-.
-- Press the end of the release cable out of the bracket -1- in the direction of the -arrow-.
-- Unclip the mount -1- from the backrest frame -2-.
-- Guide the end of the release cable through the mount opening in the backrest frame.
-- Remove the left and right release cables from the backrest frame.
