Overview - Locking Mechanism, Release Cable
WARNING: This page is about a different variant/trim than selected.
NOTE:
The Illustration Does Not Show The Backrest And Luggage Compartment Trim.

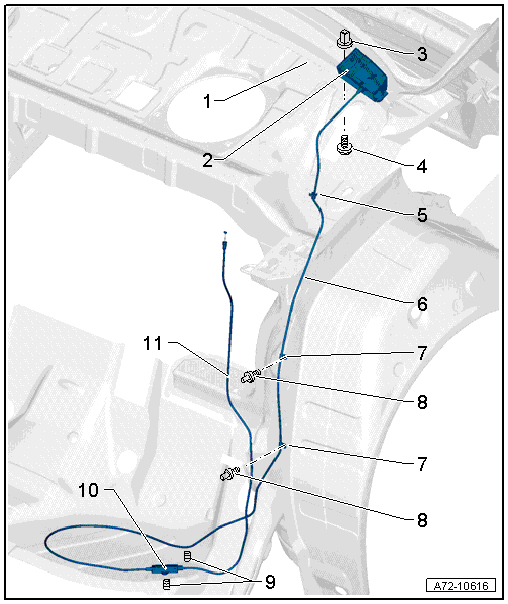

- Body Side Rear Shelf
- Handle
- For remote release with handle shell
- Removing and installing. Refer To REMOTE CONTROL UNLOCK HANDLE, REMOVING AND INSTALLING .
- Expanding Nut
- Inserted in the body
- Bolt
- 1.5 Nm
- Clip
- Release Cable
- From the remote release handle to the connector station
- Removing and installing. Refer To RELEASE CABLE WITH REMOTE CONTROL UNLOCK HANDLE, REMOVING AND INSTALLING .
- Tab
- Quantity: 2
- Retainer
- For the vehicle wiring
- For positioning the release cable
- Quantity: 2
- Stud Bolt
- To secure the connector station
- Connector Station
- For the cable with handle for the remote release
- For the cable from the lock to the backrest
- Release Cable
- From the backrest lock to the connector station
- Removing and installing. Refer To RELEASE CABLE, REMOVING AND INSTALLING FROM CONNECTOR STATION RETAINER .
