Overview - Locking Mechanism, Backrest
WARNING: This page is about a different variant/trim than selected.
NOTE:
The Illustration Only Shows The Left 1/3 Section Of The Backrest. The Backrest Lock On The Right 2/3 Section Of The Backrest Is Similar.

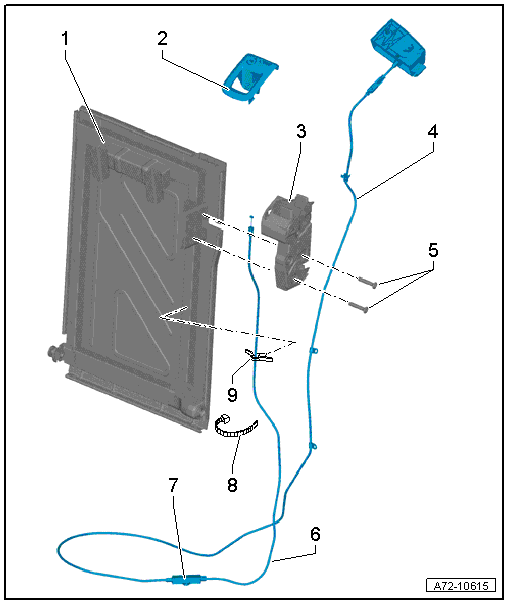

- Backrest Shell
- Trim
- For locking
- Locking Mechanism
- Removing and installing. Refer To REAR SEAT BACKREST LOCKING MECHANISM, REMOVING AND INSTALLING .
- Release Cable
- With handle for remote release
- To the connector station
- Removing and installing. Refer To RELEASE CABLE WITH REMOTE CONTROL UNLOCK HANDLE, REMOVING AND INSTALLING .
- Bolts
- 25 Nm
- 2 per retainer
- Release Cable
- From the backrest lock to the connector station
- With retaining clip
- Removing and installing. Refer To RELEASE CABLE, REMOVING AND INSTALLING FROM CONNECTOR STATION RETAINER .
- Connector Station
- For the cable with handle for the remote release
- For the cable from the lock to the backrest
- Cable Tie
- Always replace
- Retaining Clip
- Release cable delivery package
