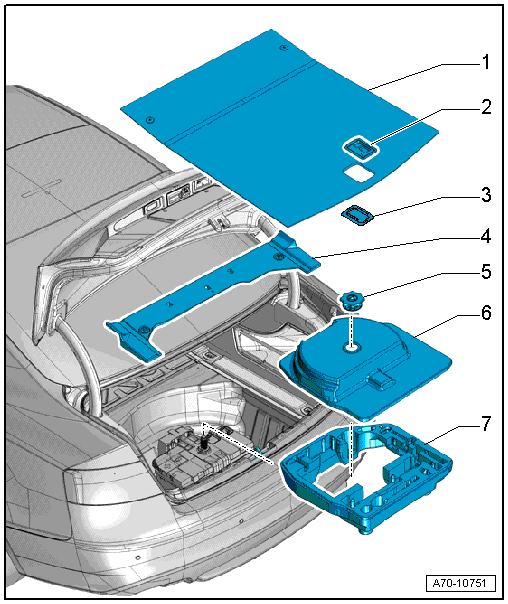

Overview - Luggage Compartment Floor
WARNING: This page is about a different variant/trim than selected.
- Luggage Compartment Floor Covering
- Removing and installing. Refer to LUGGAGE COMPARTMENT FLOOR PANEL, REMOVING AND INSTALLING .
- Bracket
- For the luggage compartment floor mat
- Removing and installing. Refer to LUGGAGE COMPARTMENT FLOOR COVERING BRACKET, REMOVING AND INSTALLING .
- Frame
- For luggage compartment floor covering retainer
- Frame
- For rear panel sill
- Removing and installing. Refer to REAR PANEL SILL FRAME, REMOVING AND INSTALLING .
- Nut
- For spare wheel mounting
- When tightening, it must audibly click into place, otherwise, turn some more
- Cover
- For the vehicle tool kit
- Vehicle Tool Kit
- Equipment levels
