Luggage Compartment Floor Panel, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Unclip the front luggage compartment mat -1- -arrows-.

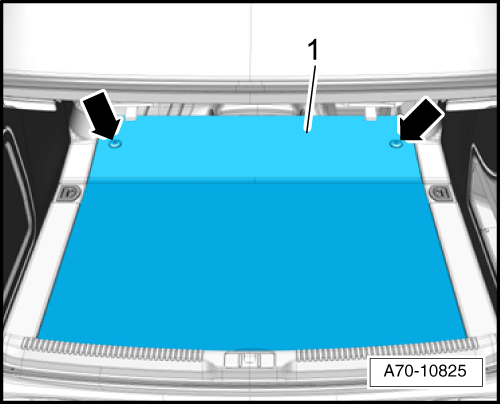

Fig 1: Removing Luggage Compartment Liner

Courtesy of AUDI OF AMERICA, LLC

-- Remove the luggage compartment floor covering.
