Luggage Compartment Floor Covering Bracket, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the luggage compartment liner. Refer to LUGGAGE COMPARTMENT FLOOR PANEL, REMOVING AND INSTALLING .
-- Release the frame -1- using the Trim Removal Wedge:3409 in direction of -arrows-.

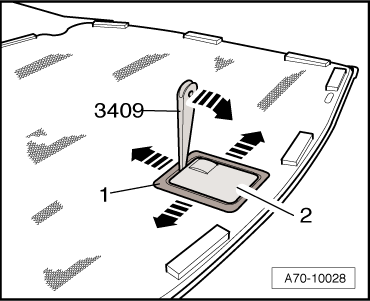

Fig 1: Identifying Mounting Bracket, Trim Removal Wedge 3409, And Luggage Compartment Floor Covering Retainer
-- Disengage mounting bracket and remove luggage compartment floor covering retainer -2-.
