Rear Three-Point Seat Belt, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

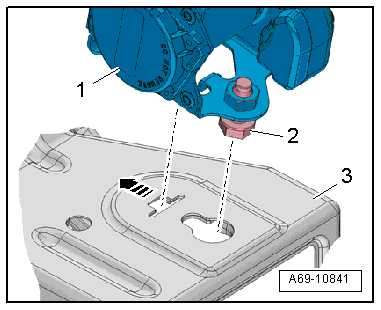

Fig 1: Disengage And Remove Automatic Belt Retractor

Courtesy of AUDI OF AMERICA, LLC

-- If parts of the seat belt system are removed due to an accident, replace the belt system mounting bolts.

-- Insert the three-point seat belt with the anti-twist mechanism and bolt -2- into the mount -3-.

-- Push the three-point seat belt -1- all the way forward in direction of -arrow- and tighten the bolt at the same time.

Versions with Rear Seat Belt Tensioner Igniter:

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

NOTE:

Make sure the connectors are installed correctly and are secure.

Make sure the wires do not get caught.

WARNING:

Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. There must not be anyone inside the vehicle when connecting the battery.

-- Connect the battery ground cable with the ignition turned on. Refer to BATTERY .

Continuation for All Vehicles:

Install in reverse order of removal.
