Rear Seat Belt Latch, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the bench seat. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING .

-- If equipped, release the cover retainer using a screwdriver in direction of -arrow-.

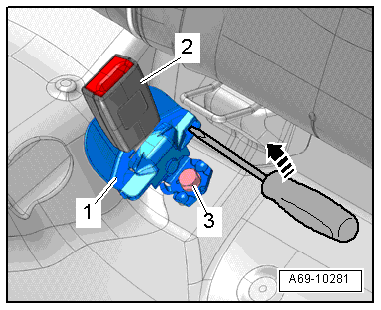

Fig 1: Removing Rear Belt Latch
GWWA69-10281Courtesy of AUDI OF AMERICA, LLC

-- Open the seat belt latch cover -1- and remove it.

-- Remove the bolt -3- and then remove the seat belt latch -2-.
